Gabion BOX is a rectangular wire mesh box made from double twisted hexagonal mesh of steel wire

Products

< >

Gabions box

Material:	Low Carbon steel iron wire
Feature:	Corrosion resistant
Application:	Control and guide of water or flood

Send Email

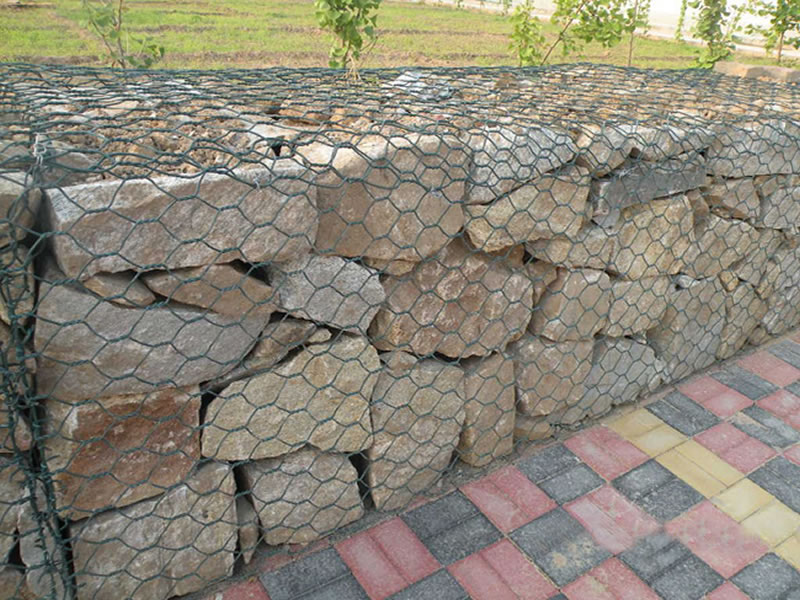

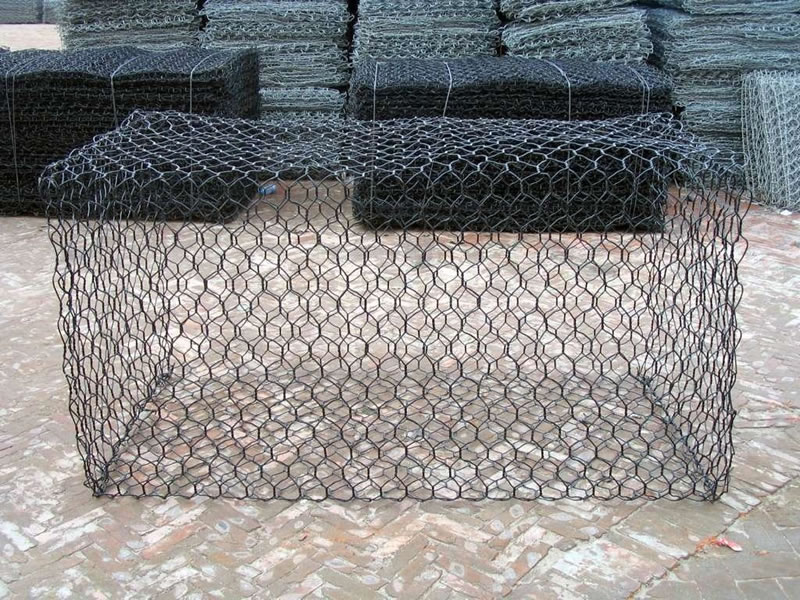

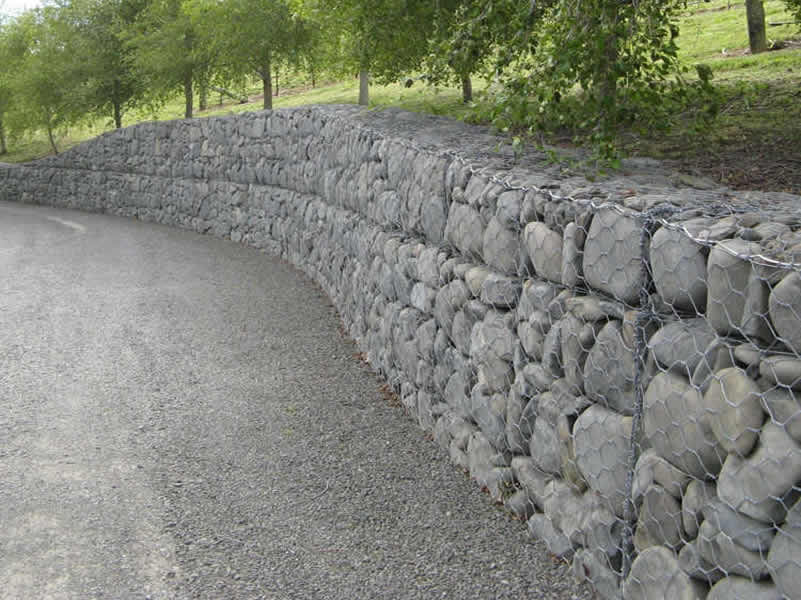

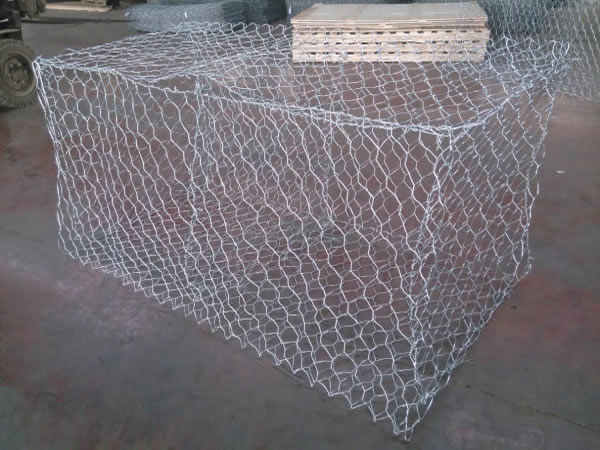

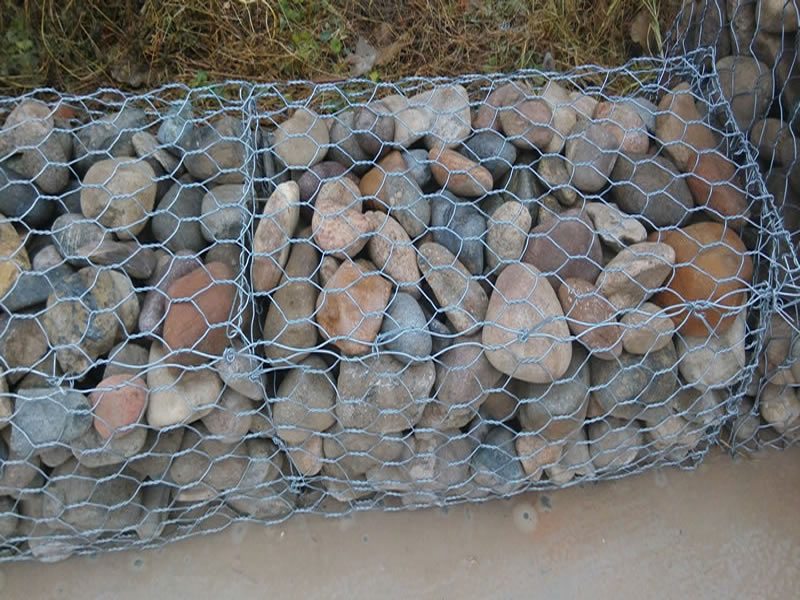

Gabion BOX is a rectangular wire mesh box made from double twisted hexagonal mesh of steel wire, additionally reinforced by selvedge of heavier wire running along the edges and by transverse diaphragms. These mesh boxes are delivered to site flat-packed, whereupon they are assembled, lifted into position, and filled with durable rock. The modular nature of the gabion means that it can be used in a vast array of applications and configurations.

A gabion is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, military applications and landscaping. For erosion control, caged riprap is used. For dams or in foundation construction, cylindrical metal structures are used. In a military context, earth or sand-filled gabions are used to protect sappers, infantry, and artillerymen from enemy fire.

1. Material

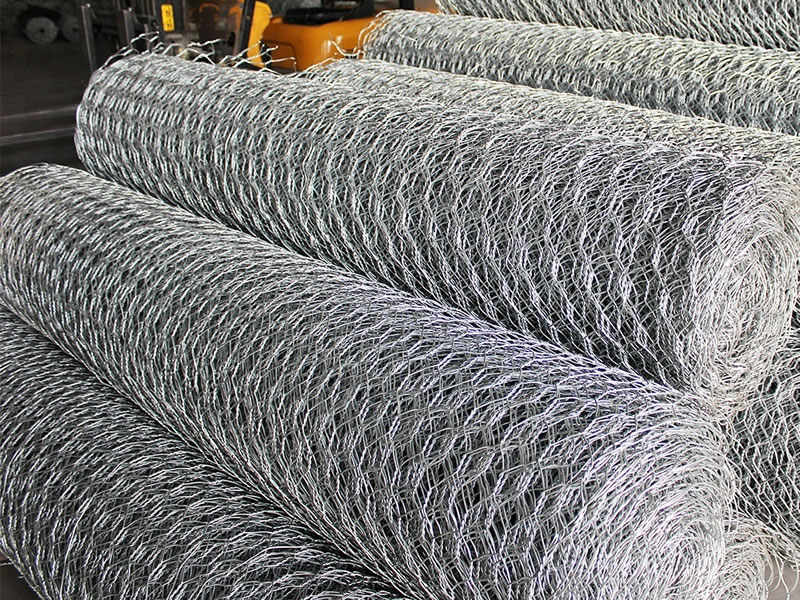

It is made from high grade Low Carbon steel iron wire, heavy zinc coated wire, PVC coated wire though twisting and braiding by machine. as well as galfan coated units. Galfan is a high performance galvanize process using a zinc/aluminium/ mischmetal alloy coating. This offers significantly greater protection than traditional zinc galvanizing. Where the product is exposed to water courses or a saline environment, we strongly recommends a polymer coated galvanized unit for improved design life.

2. Specification:

Mesh Size	Wire Thickness	Standard Box Dimensions (Length x Width X Height)	Surface Treatment
60 x 80mm	Ø2.7mm mesh wire Ø3.4mm selvage wire Ø2.0mm tie wire	1 X 1 X 1m 1.5 x 1 x1m 2 x 1 x 0.5m 2 x 1 x 1m 3 x 1 x0.5m 3 X 1 X 1m 4 x 1 x0.5m 4 x 1x 1m 4 x 1.5 x 1m 4 x 2 x 1m	HOT GALVANIZED/ HOT DIPPED GALVANIZED/ PVC COATED
80 X 100mm	Ø3.0mm mesh wire Ø3.9mm selvage wire Ø2.0mm tie wire
100 X 120mm	Ø2.7/3.7mm mesh wire Ø3.4/4.4mm selvage wire Ø2.2/3.2mm tie wire

3. Main markets of Gabions

Europe, America, Southeast Asia countries, etc.

4. Features:

• Economic. Just fill the stone into the gabions and seal it.
• Simple installation. No special technology needed.
• Weather proof under natural destroy, corrosion resistant.
• No collapse even under big scope of deforming.
• Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
• Good permeation can prevent the damage by hydrostatic.
• Less transport freight. It can be folded together for transport and further installation.

5. Application

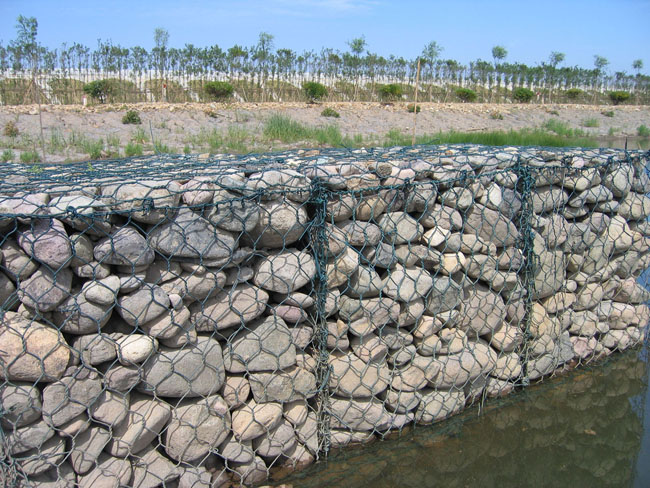

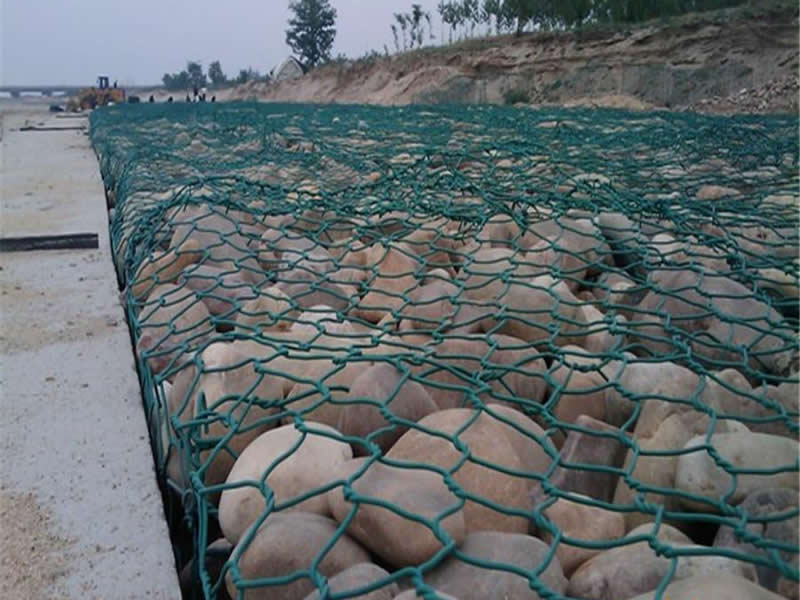

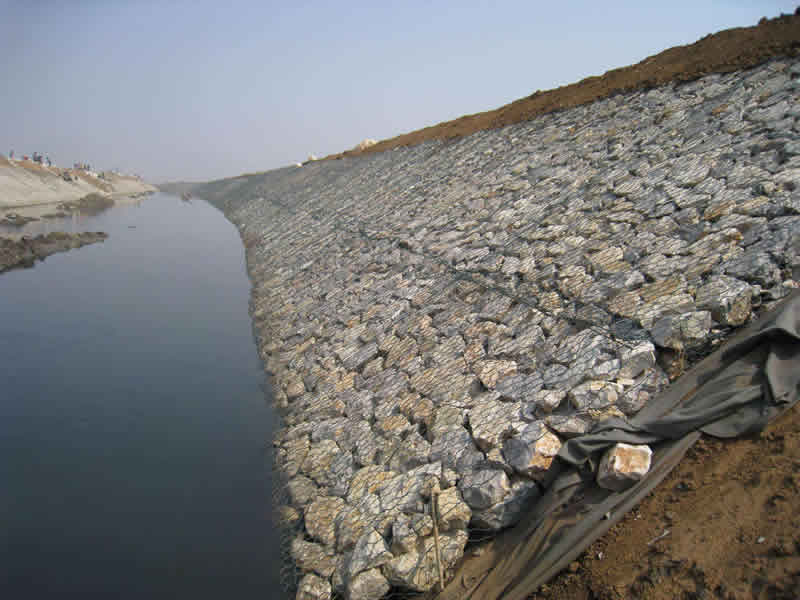

• Control and guide of water or flood
• Flood bank or guiding bank
• Proventing of rock breaking
• Water and soil protection
• Bridge protection
• Strengthening structure of soil
• Protection engineering of seaside area
• Seaport engineering

Welded gabions

Welded gabions are prefabricated from welded steel wire mesh, forming a contract with woven wire mesh gabions.

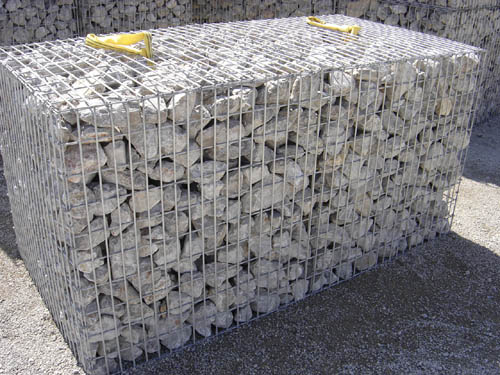

The welded gabion cages (stone cages) is made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.

Welded Mesh size: 100 x 100 mm (other available mesh size: 50 x 50mm,100 x 50mm and 3' x 3')

Material wire: Heavy duty galvanized wire diameter from 3.0mm to 6.0mm (galfan coated wire available).

Normal Gabions size:

2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.5 x 0.5m, 2.0 x 0.3 x 0.3m,
1.0 x 1.0 x 1.0m, 1.0 x 1.0 x 0.5m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x 0.5m,
1.2 x 0.6 x 0.6m, etc. Required size available.

Packing: Each set is flat packed and then on pallet.

Features

• High Strength: Rigid welded mesh structure.
• Corrosion Resistance: Galvanized, Galfan, or PVC-coated steel wire.
• Easy Installation: Simple assembly with spiral wires or clips.
• Good Drainage: Allows water to pass through stone filling.
• Custom Sizes: Various mesh openings, wire diameters, and dimensions.
• Low Maintenance: Durable structure with minimal upkeep.
• Natural Appearance: Suitable for decorative landscaping.

Applications

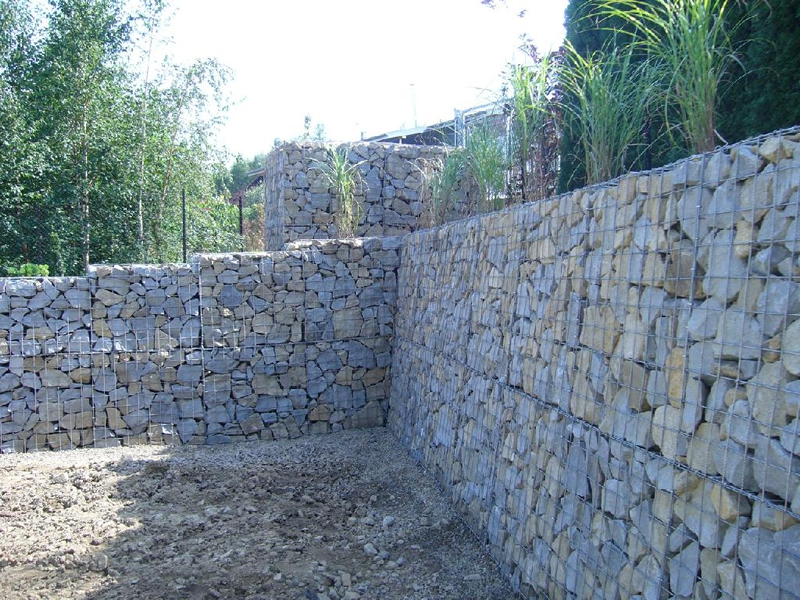

• Retaining Walls: Soil retention and slope stabilization.
• Slope Protection: Erosion control on slopes and embankments.
• Riverbank Protection: Riverbank and channel erosion control.

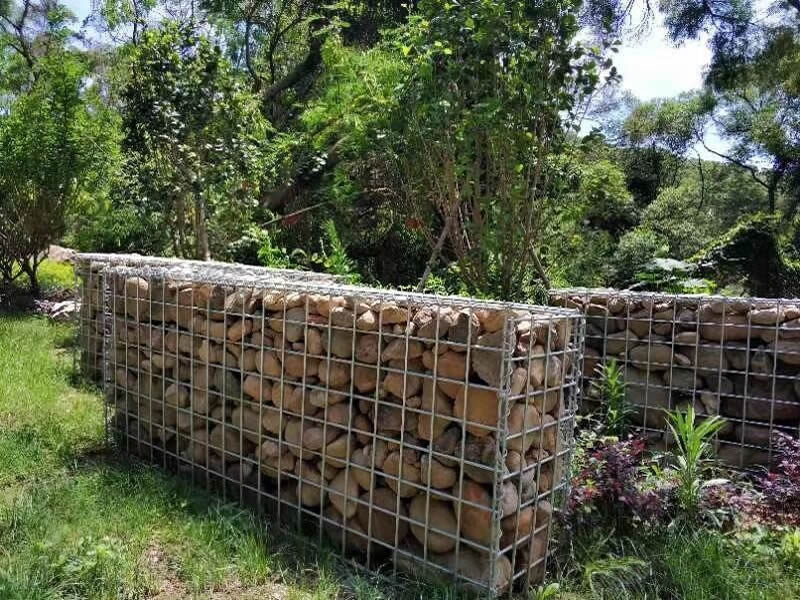

• Gabion Fences: Boundary walls and privacy fencing.

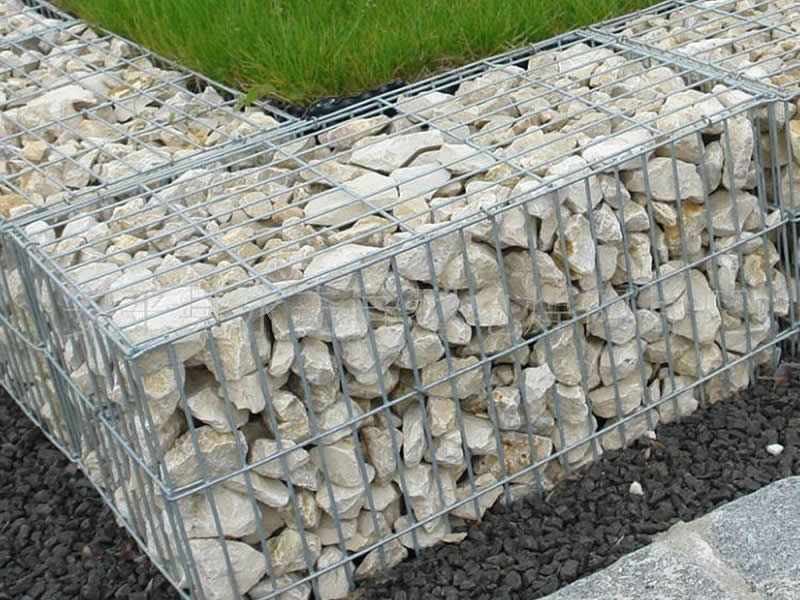

• Landscape Decoration: Garden walls, planters, and decorative features.
• Architectural Facades: Stone-filled building decoration.
• Road Construction: Roadside retaining walls and embankments.
• Noise Barriers: Traffic and industrial noise reduction.
• Garden Furniture: Outdoor benches and seating structures.
• Public Landscaping: Parks, gardens, and commercial spaces.
